VOLGA Instruments Pvt. Ltd.

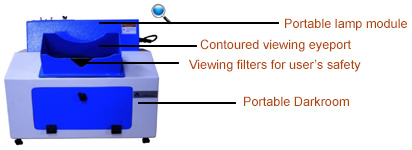

UV CABINET

MODEL "CRYSTAL - 3"

SALIENT FEATURES / SPECIFICATIONS

Modern UV- Cabinet for visual inspection of sample spots/bands on TLC/HPTLC plates.

Light Source: Imported & high quality lamps – 254 nm , 366 nm & visible light . Separate control switches for each lamp.

Filters: Imported & high quality UV-transmittance filters to block unwanted harmonic light

Imported & high quality UV filter for viewer’s safety

Instant ,uniform & flickerless illumination.

Digital Timer: Microprocessor based digital timer , 3-digit display , 1-99 hrs.

UV –Cabinet can be set for auto ‘cut -off ‘ , immediately after use.

Can also be set for longer duration for ‘ degradation studies ‘.

Temperature \ Humidity: 30 C / 58% Rh

Voltage: 230VAC 50Hz +/- 10%

Dimensions: 450 x 290 x 290 mm

OPTIONAL: Transilluminator Visible or UV light (254 , 302 or 366 nm)
